Non Destructive Testing Lab

Ultrasonic Testing

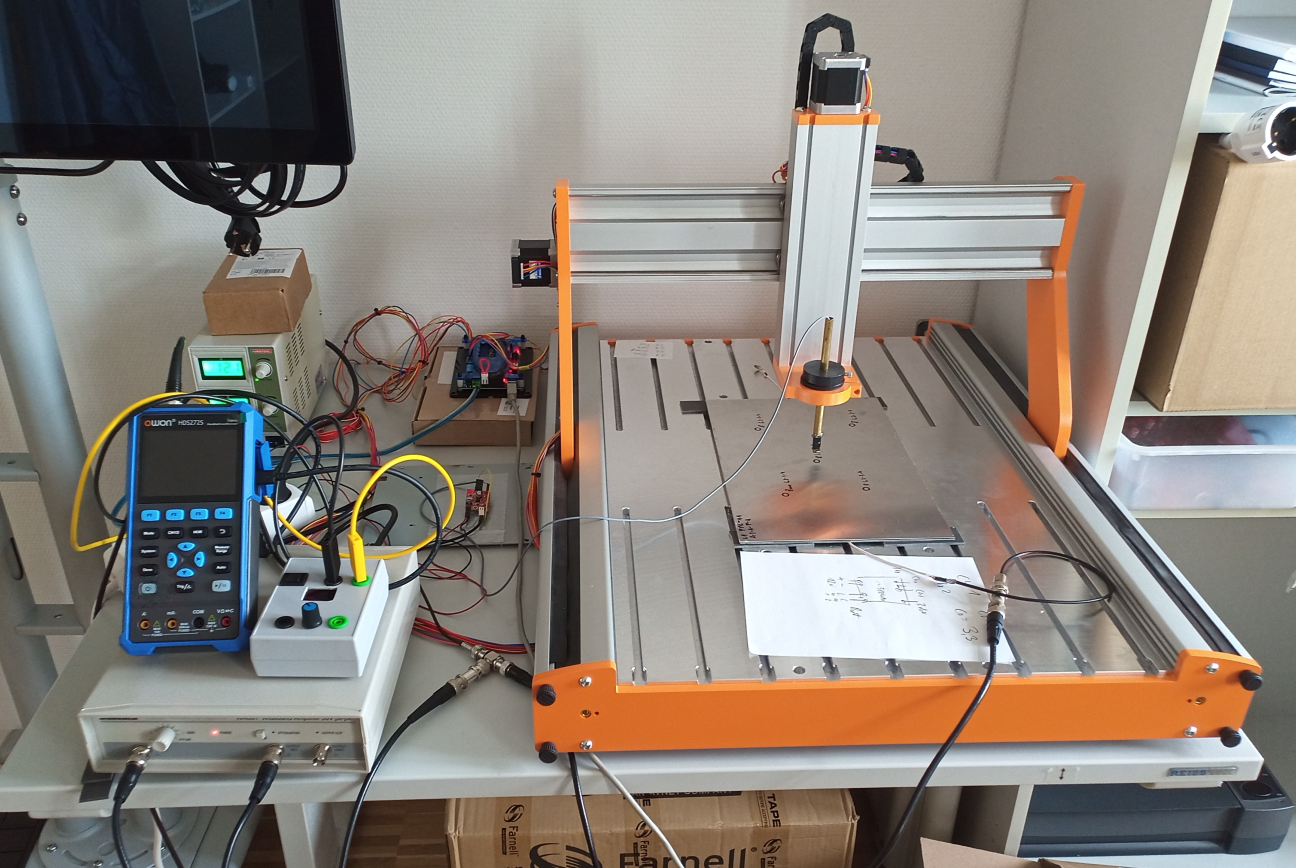

Large Air-coupled Ultrasonic Scanner providing C-scan data volumes (spatially resolved time signals). The sensor is a consumer MEMS microphone, the stimulus signal is coupled via the back surface of test structure (here a self-manufactured Fibre-Metal laminate plate with structural defects)

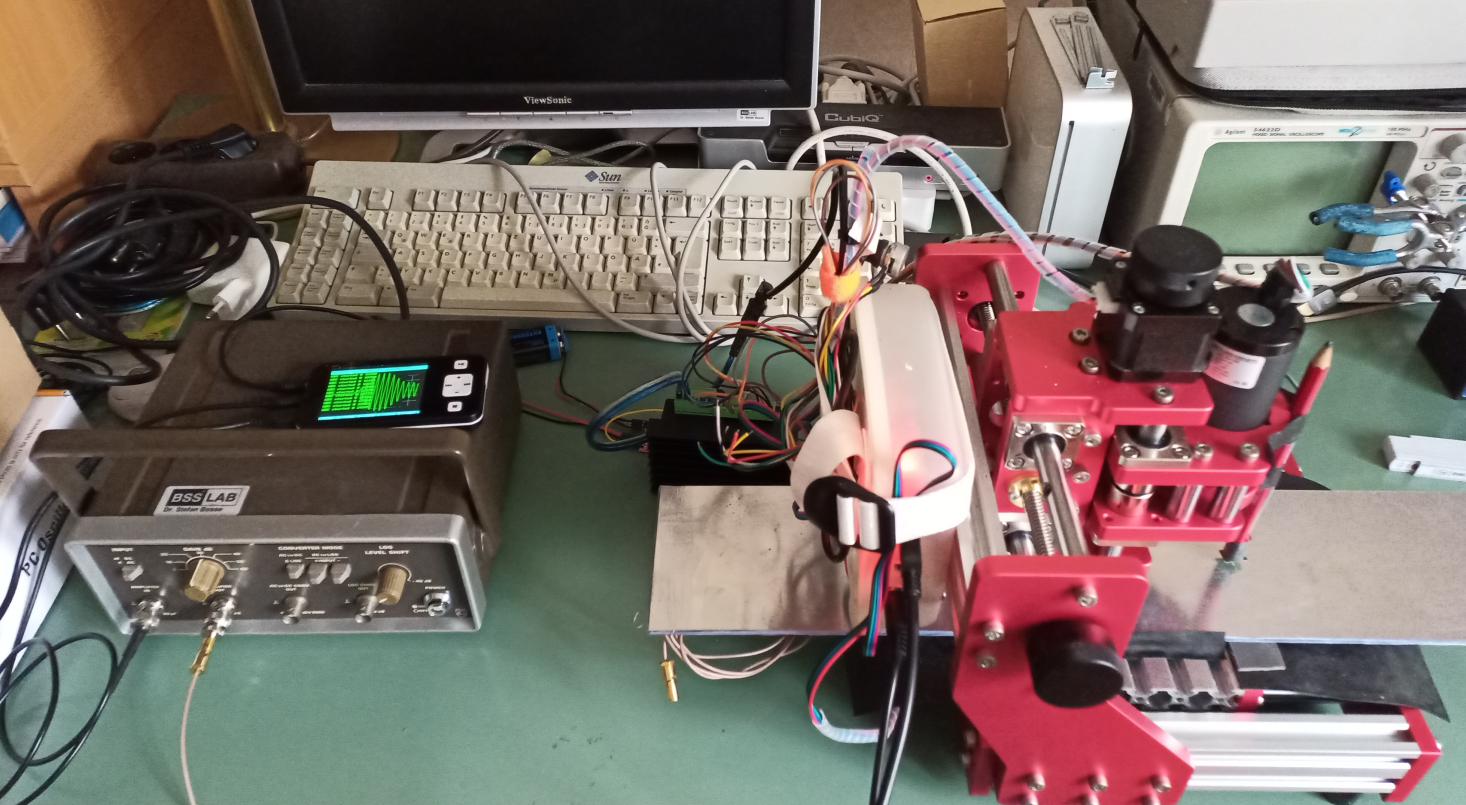

Small Air-coupled Ultrasonic Scanner providing C-scan data volumes (spatially resolved time signals). The sensor is a consumer MEMS microphone, the stimulus signal is coupled via the back surface of test structure (here a Fibre-Metal laminate plate provided by the Faserinstitut Bremen and pseudo-defects applie dto the plate surface)

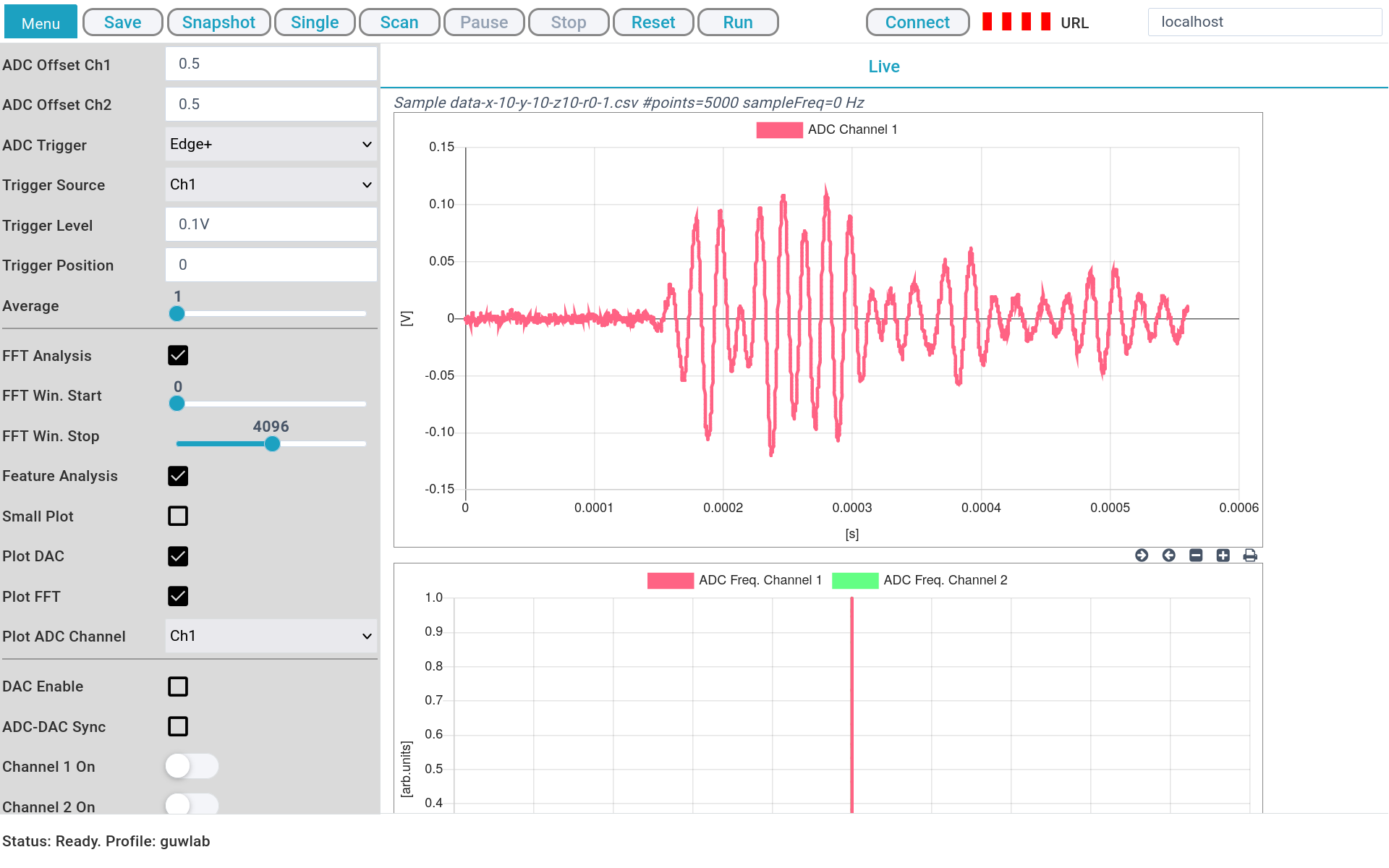

GUWLAB software with full ADC/DAC/GRBL control, script batch processing, and signal processing

X-ray Testing

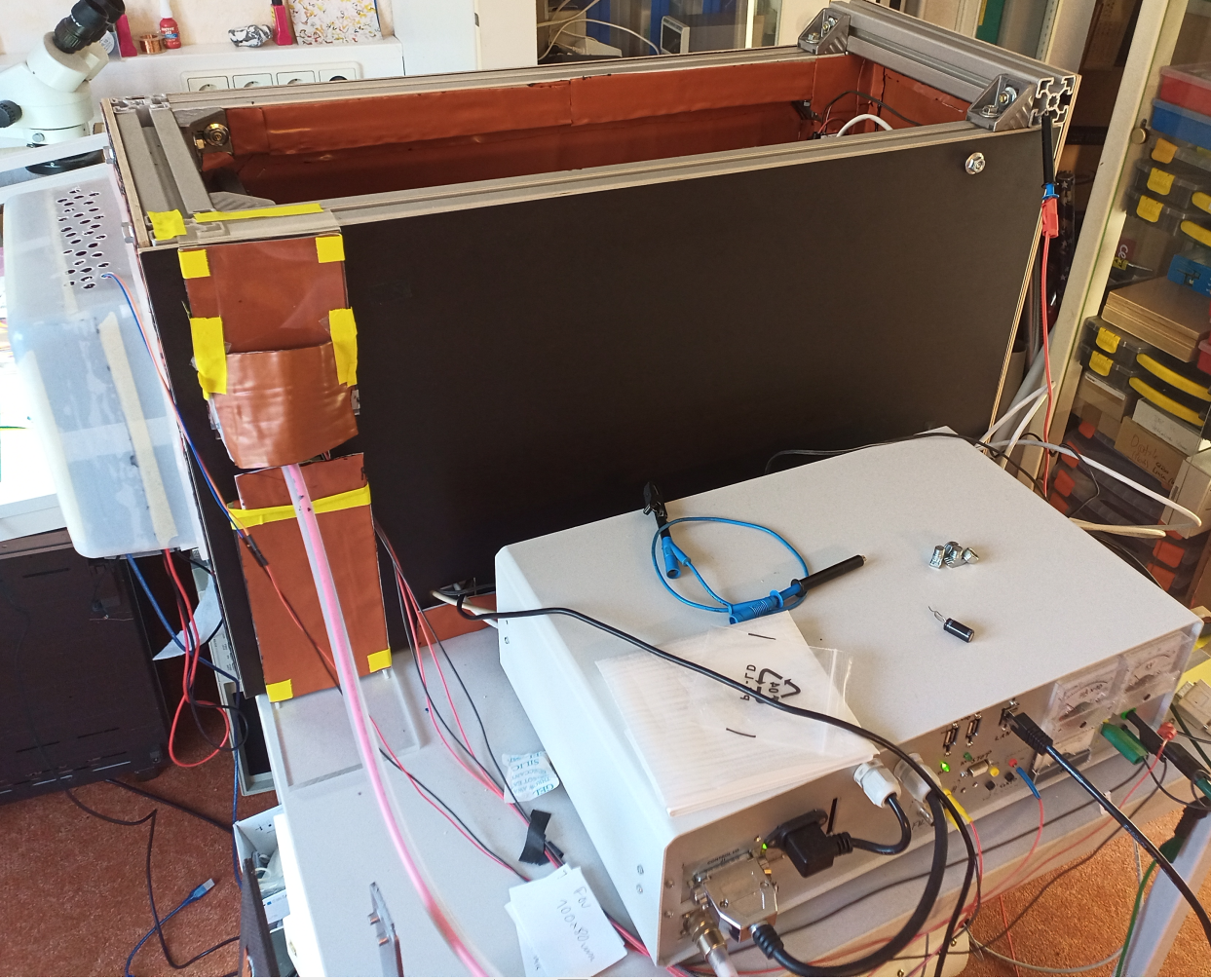

Micro-Focus Xray radiography and CT measuring device with shielded measuring chamber containing the X-ray source (micro-focus Oxford Instruments, 93508, Cu target, 50W, 35μm FSD), linear and rotational motion stages for probe positioning and the X-ray tube and detector controller.

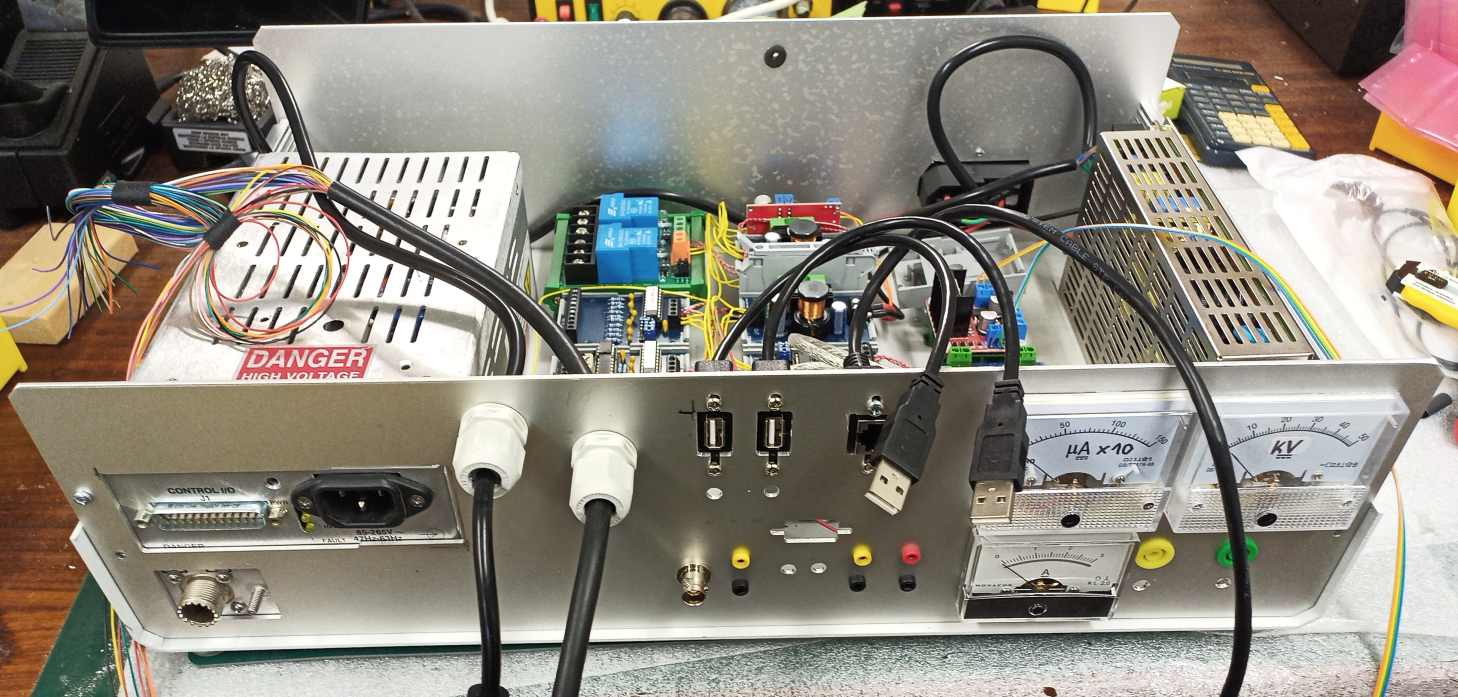

Inside view of the X-ray tube and detector controller (coupled to local Ethernet) with controllable and regulated High-voltage supply (50 kV, 1 mA).

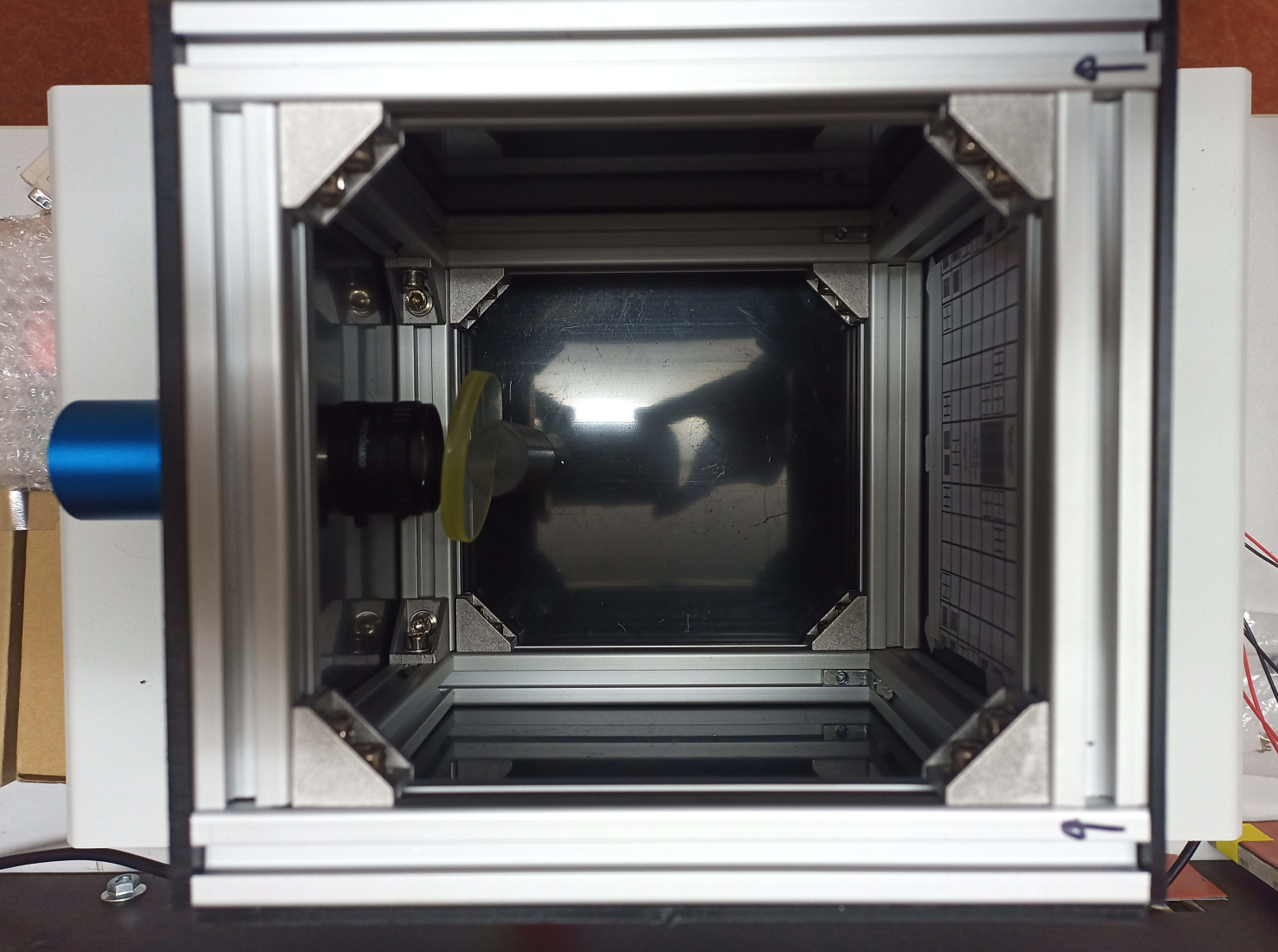

Inside view of the camera-based X-ray detector (left Sony IMX290 camera, Pb glass, and right the scintillator screen).

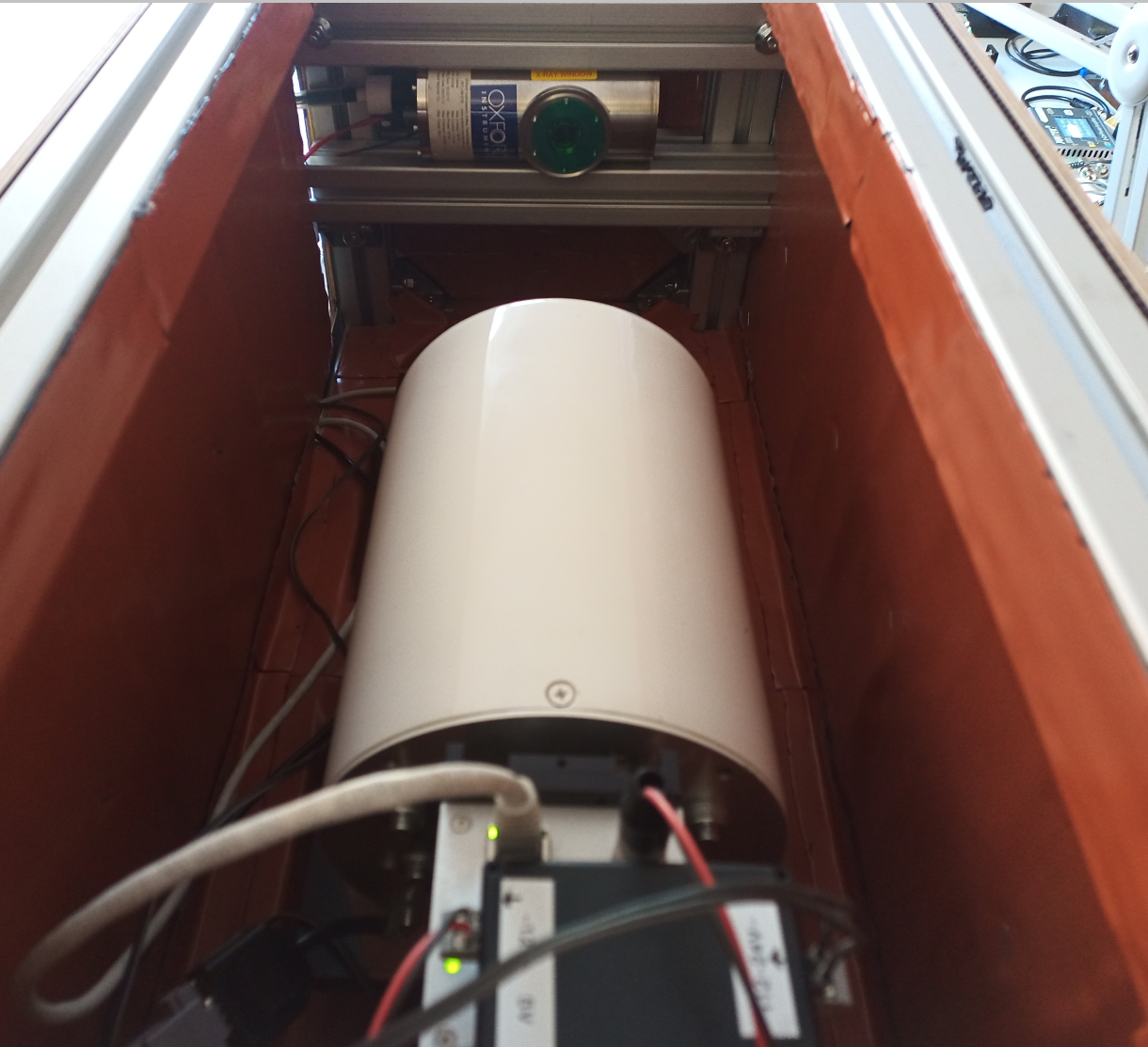

Inside view of measuring chamber with micro-focus X-ray tube (Oxford Instruments, 93508, Cu target, 50W, 35μm FSD)) and X-ray Image Intensifier (Toshiba E5877J-P1K Röntgenbildverstärker + IPX-2M30 GMCN camera). The detector as well as the probe mounting can be moved along the source-detector axis with bearing ball sliders

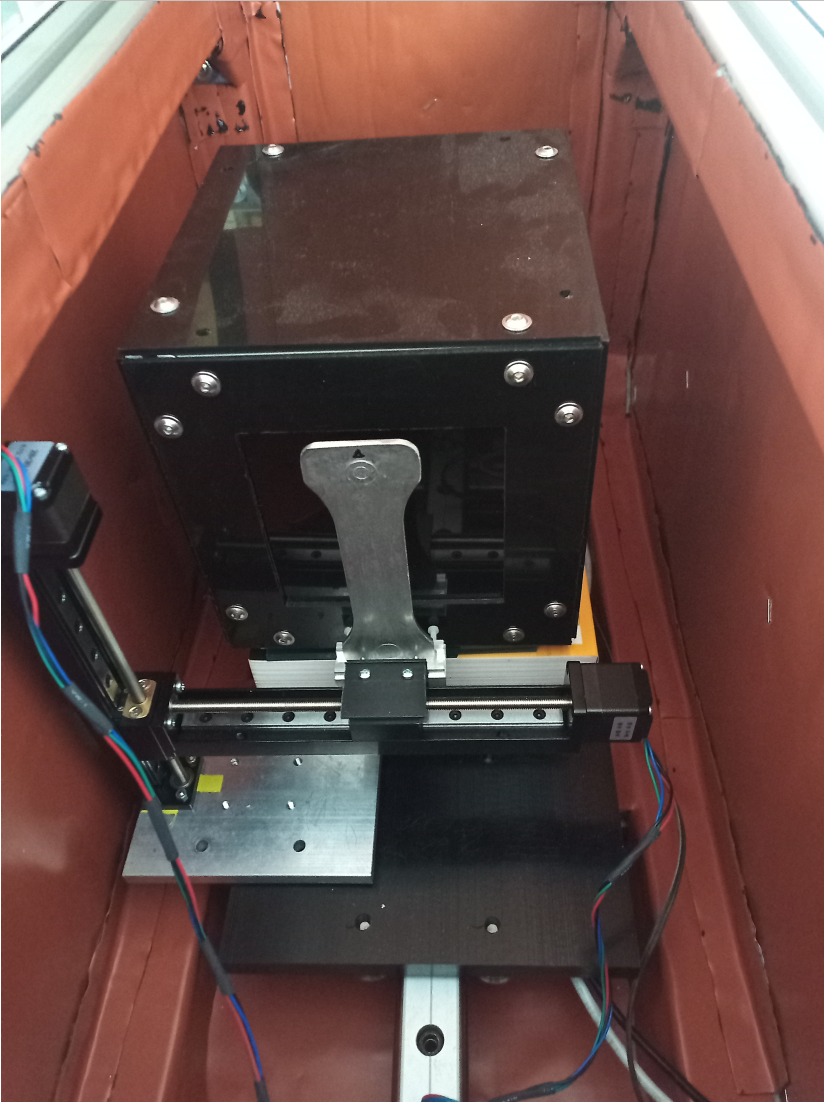

Inside view of measuring chamber with camera-based X-ray detector using a scintillator screen and the probe mounting with two linear stages (here with a high-pressure die casted Aluminum t-bone plate provided by the Fraunhofer IFAM, Bremen).

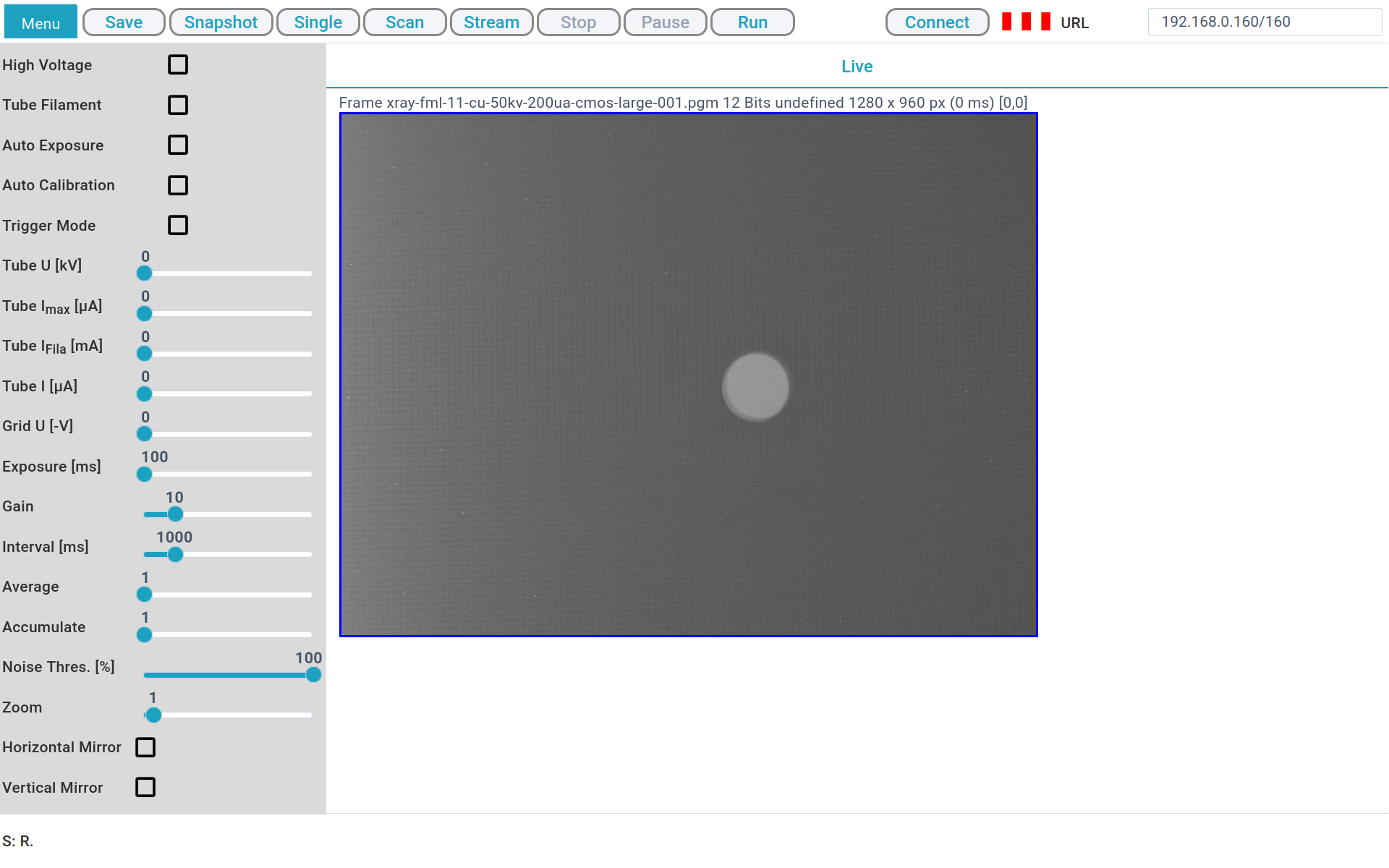

XRAYLAB software with full HV/Video/GRBL control, script batch processing, and image processing (including image distortion and intensity profile correction)

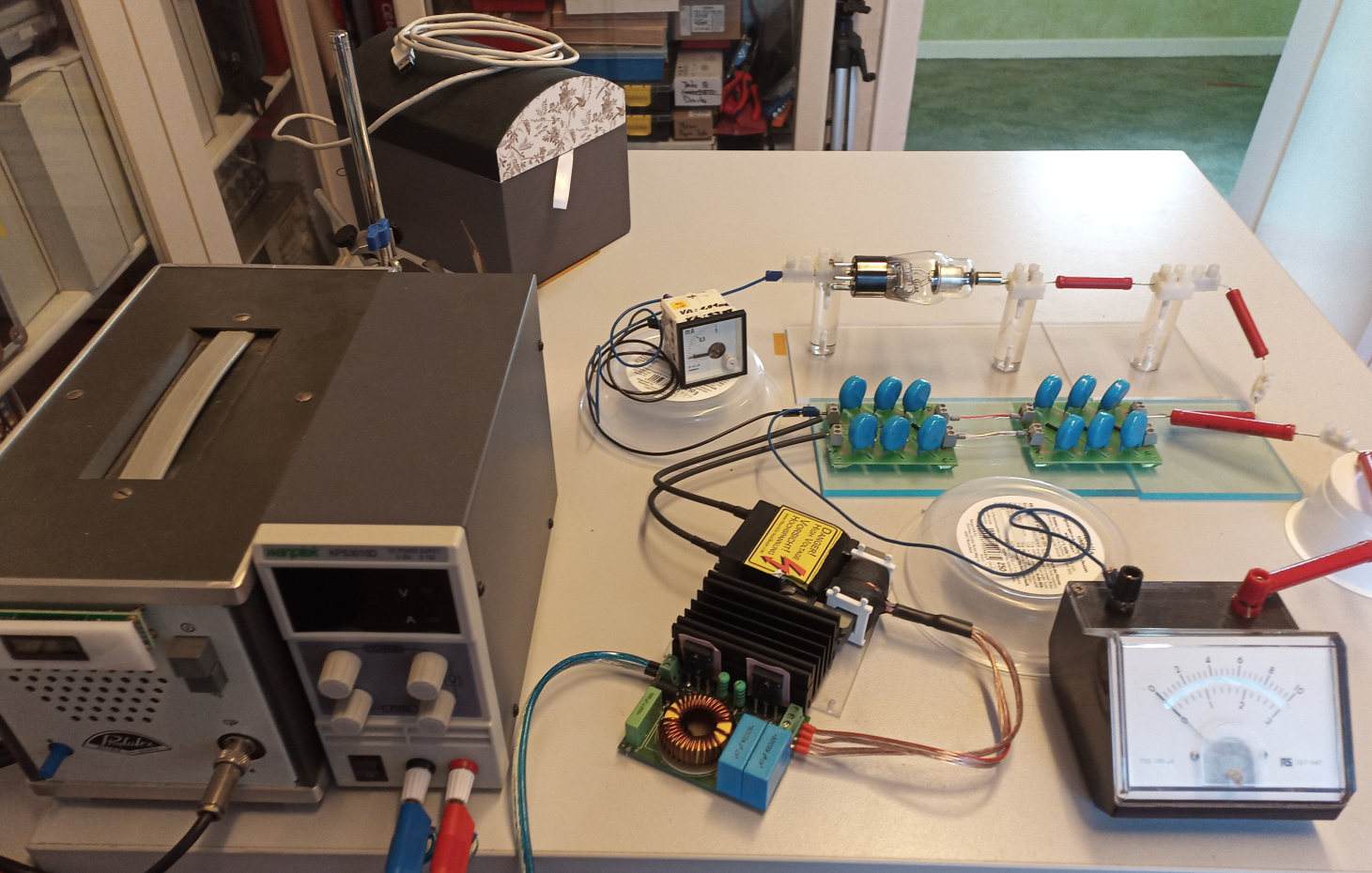

Early experiments with an electron diode tube.
